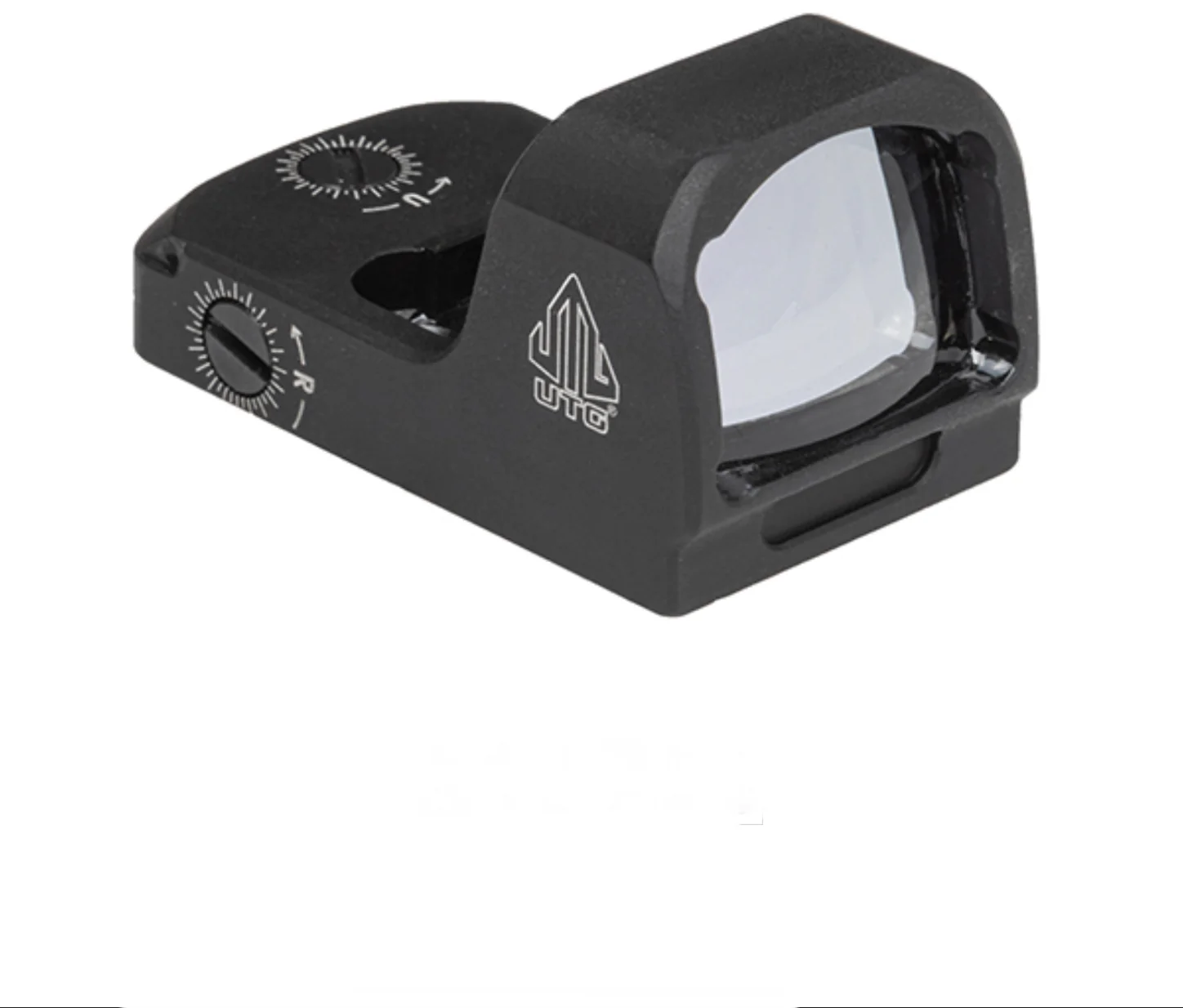

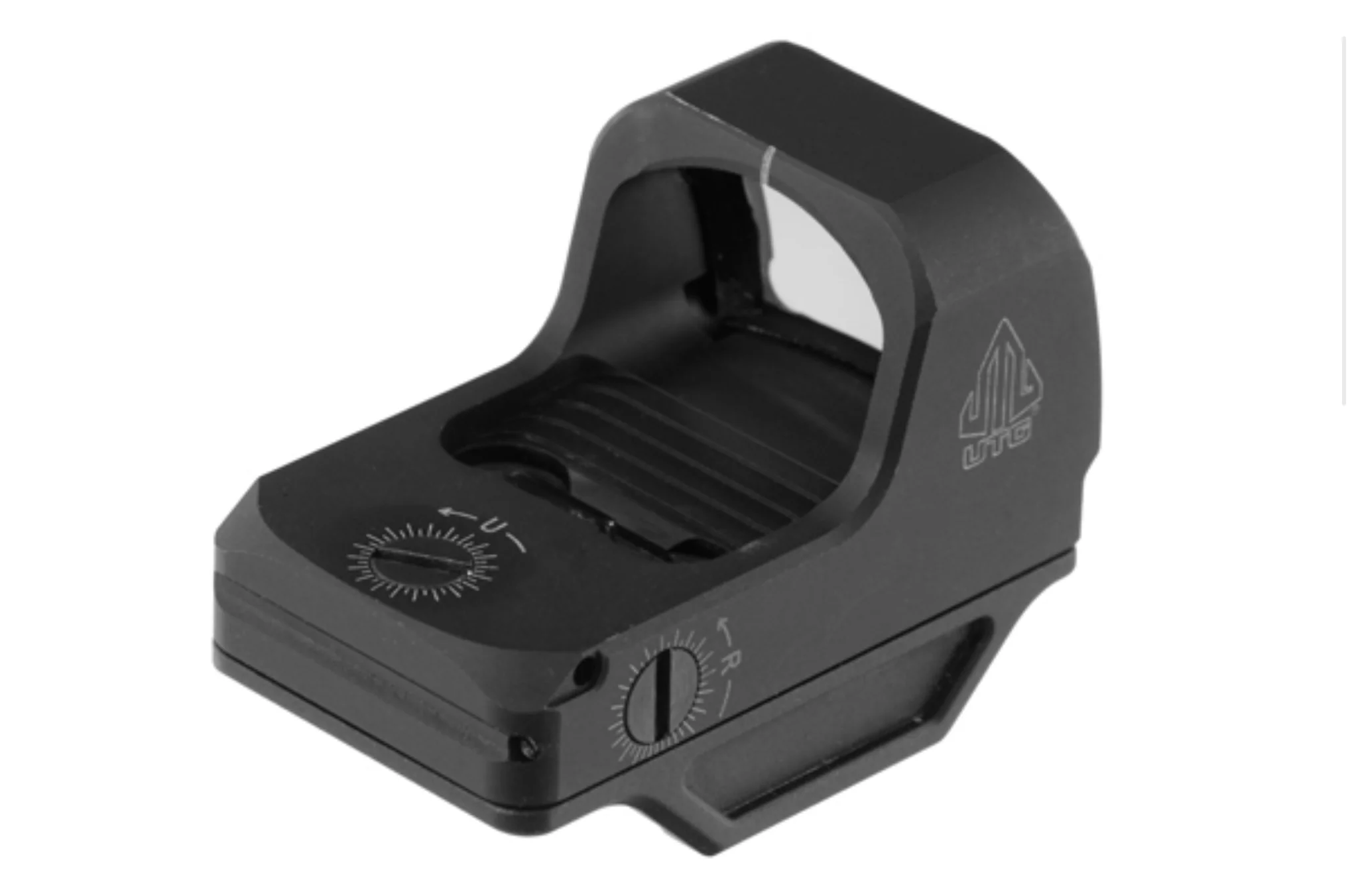

UTG OP3 MIRCO, GREEN 4.0 MOA DOT, ADAPTIVE BASE
DESCRIPTION
OP3 MICRO SERIES
Just like optics on long guns being common place, pistol mounted optics, are on their way to becoming one in the same. With the benefits being obvious and handguns being the primary option for on-the-go and on-your-person defense, UTG® OP3 Micro reflex dot sights are your next choice in reliable and affordable pistol mounted optics with different models tailored to the unique needs of various shooters.
OP3 Micro: Battery Life in Years, IPX7 Waterproof, Green or Red 4.0 MOA Single Dot Models, Docter® or RMR® Footprint OP3 Micro SL: Battery Life in Years, Side Loading Battery, IPX7 Waterproof, Red 4.0 MOA Single Dot, Docter® Footprint
OP3 Micro SL: Battery Life in Years, Side Loading Battery, IPX7 Waterproof, Red 4.0 MOA Single Dot, Docter® Footprint
OP3 Micro SLS: Battery Life in Years, Side Loading Battery, Automatic and Manual Brightness Modes, IPX7 Waterproof, Red 4.0 MOA Single Dot, Docter® or RMR® Footprint
OP3 Mini Micro: Constant-on, Automatic Brightness, IPX7 Waterproof, Red 3.0 MOA Single Dot, Single Stack JP® Footprint
DETAILS
- Precision Machined from 6061-T6 Aluminum and Finished in a Matte Black Anodization

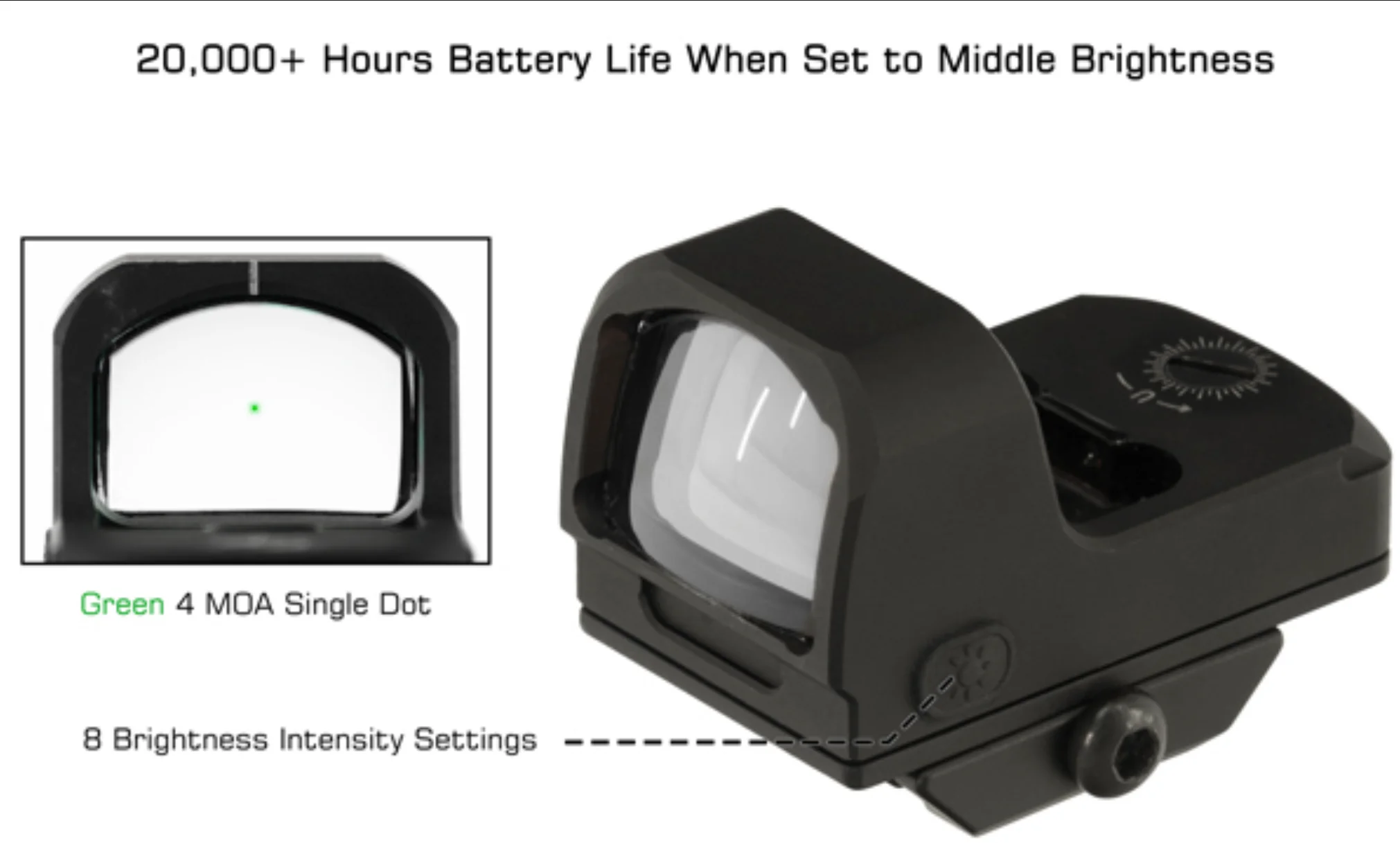

- Green 4.0 MOA Single Dot with 8 Brightness Intensity Settings
- 20,000+ Hours Battery Life at Middle Brightness Setting
- Magnetized Battery Compartment Reduces Intermittent Reticle Illumination and Flicker
- Crisp 1 MOA per Click Adjustment
- Large FOV Multi-coated Glass Lens

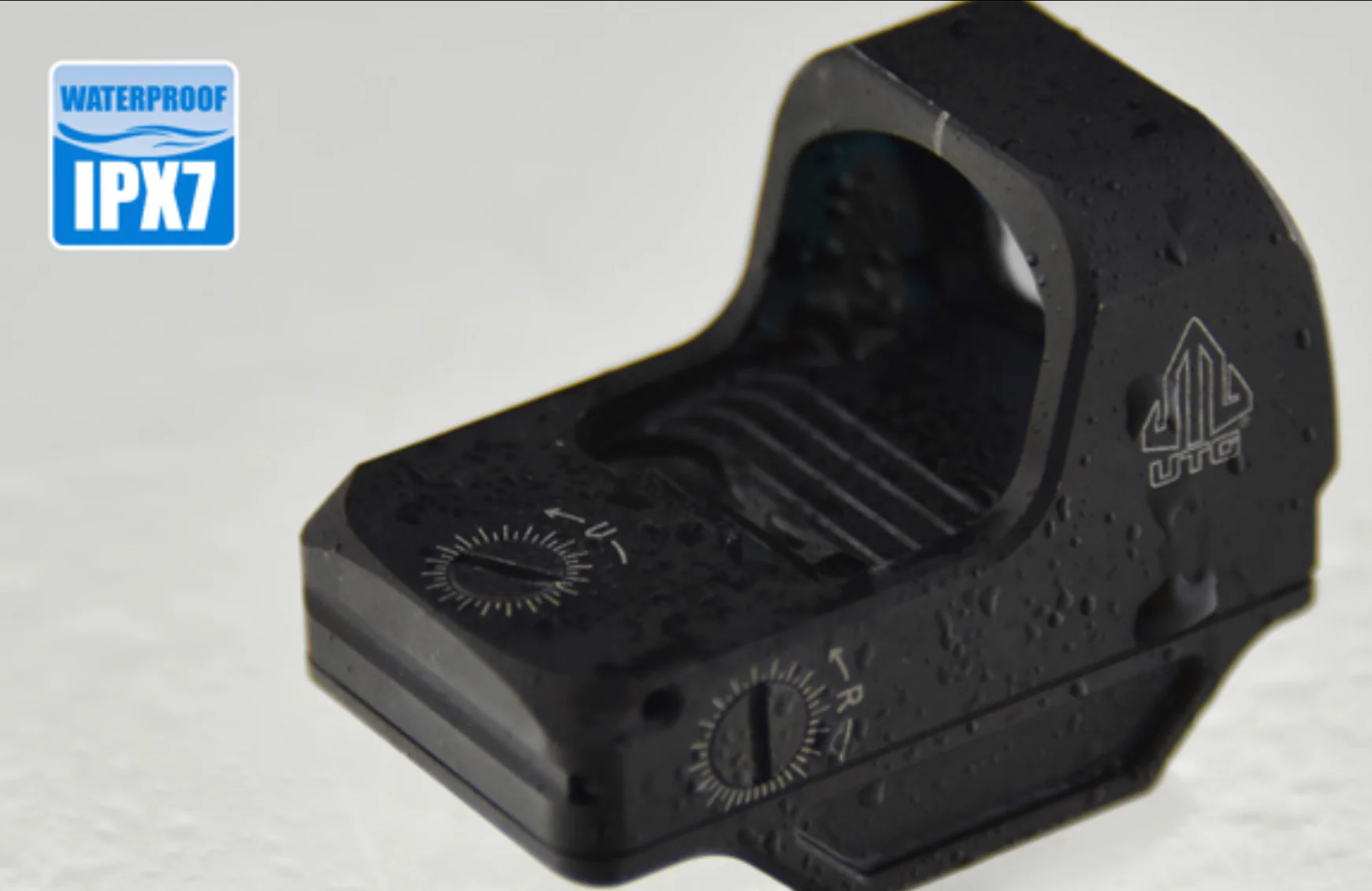

- IPX7 Waterproof Rated
- Includes Removable Low Profile Picatinny Mounting Base
- Mounting Base Interface Uses the Common Docter® Footprint

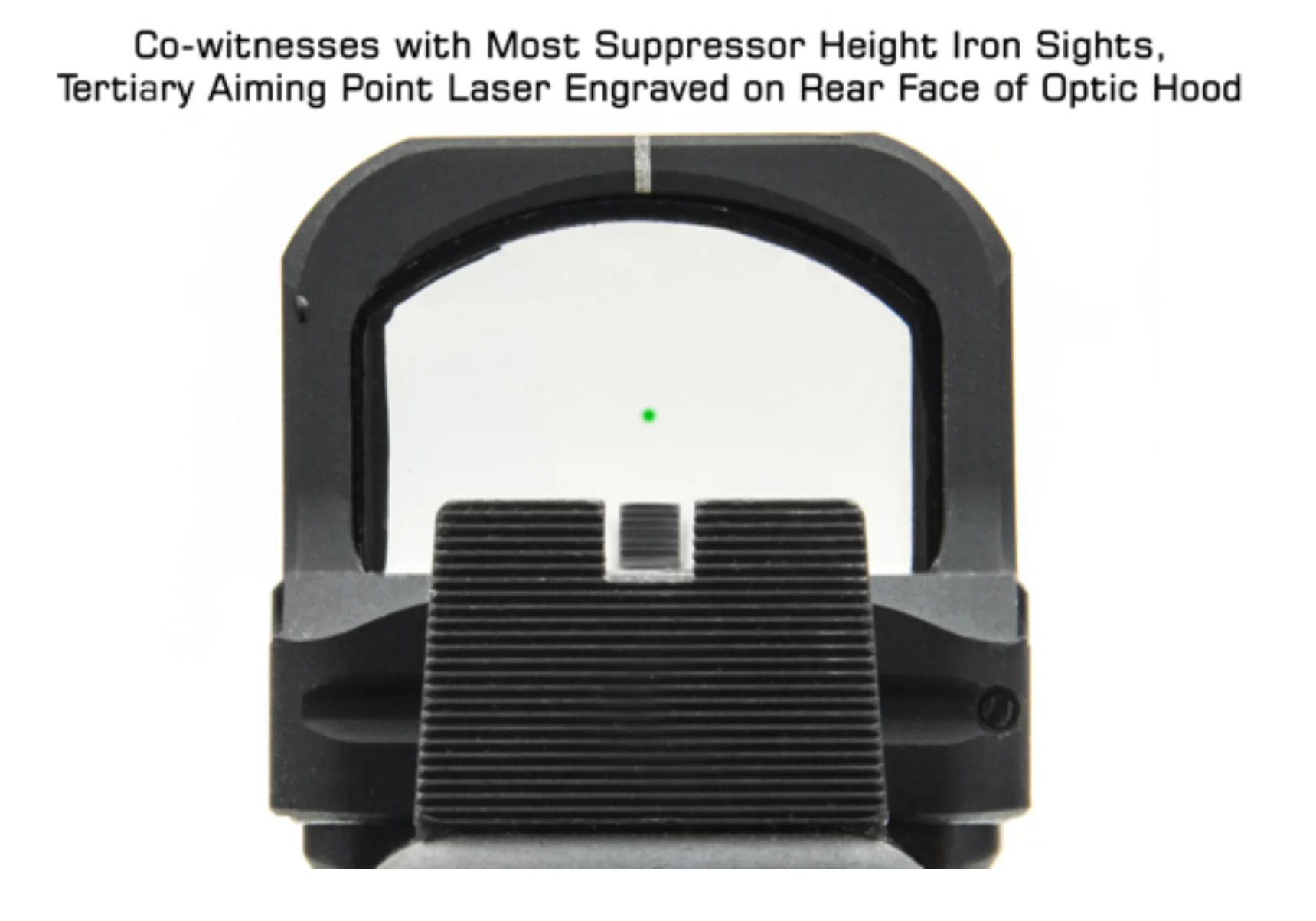

- Optic Height Co-witnesses with Most Suppressor Height Iron Sights
- Tertiary Aiming Point Laser Engraved on Rear Face of Optic Hood

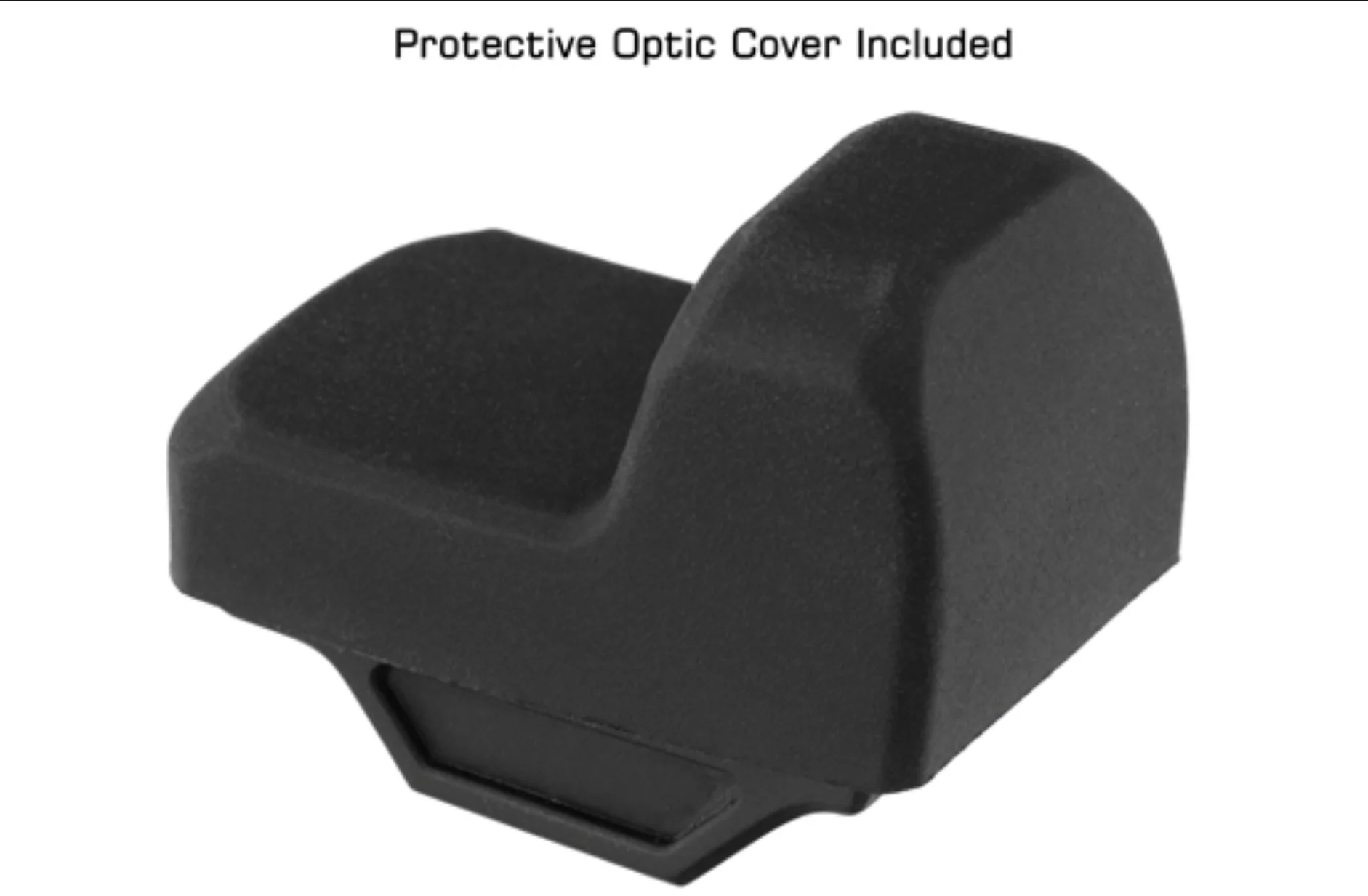

- Protective Optic Cover Included
- Compatible with Most Optics Ready Pistol Systems and All UTG® RDM20 Mounts
CAUTION: Only use the included #6-48 screws for optic installation.
NOTE: We recommend tightening the #6-48 screw with torque value of about 12 inch-lb and the side plate screw with torque value of about 35 inch-lb.
SINGLE DOT RETICLE
Target Dot reticle consists of a single floating dot in the center as the aiming point with the least visual distraction. It is commonly used for quick aiming applications with lower demand for pin-point accuracy. The shooter aims by pointing the dot at the target. For a reflex dot sight based on light reflection, the sight usually does not have magnification and there is an unlimited eye relief. The dot is a reflected image of the light source with common characteristics from any light reflection, including possibly slight flare and fuzziness of the dot.
GREEN DOT
ACCESSORIES INCLUDED
M3x0.5 T10 Torx Screw, 7mm X2
#6-48 T10 Torx Screw, 7mm X2
Allen Wrench 3mm
T10 Torx Wrench
W/E Adjusting Wrench
Protective Optic Cover
Cleaning Cloth
User Manual
SPECIFICATIONS
| MADE IN USA | No |
|---|---|
| WARRANTY | Lifetime |
| MATERIALS | 6061-T6 Aluminum |
| COLOR(S) | Black |
| QUICK-DETACHABLE | No |
| PARTS INCLUDED | #6-48 T10 Torx Screw, 7mm, Cleaning Cloth, CR2032 3V High Energy Lithium Battery, Dot Sight Owners Manual, Hex Wrench 3mm, M3x0.5 T10 Torx Screw, 7mm, Protective Optic Cover, T10 Torx Wrench, W/E Adjusting Wrench |
| WATERPROOF RATING | IPX7 |
| RETICLE | Single Dot |
| RETICLE COLOR(S) | Green |
| ILLUMINATION TOGGLE TYPE | Button |
| BRIGHTNESS MODE(S) | Manual |
| BATTERY TYPE | CR2032 3V |
| BATTERY LIFE (HRS) | 20000 |
| BATTERY LOADING | Bottom |
| CLICK VALUE @ 100 YARDS (MOA) | 1 |
| MAGNIFICATION | 1 |
| PARALLAX (YDS) | Infinity |
| PARALLAX (M) | Infinity |
| LENS MATERIAL | Glass |
| OPTIC FOOTPRINT | DOCTER |
| WEIGHT (OZ) | 1.3 |
| WEIGHT (G) | 36.9 |
DIMENSIONS
| HEIGHT (IN) | 1.02 |
|---|---|
| LENGTH (IN) | 1.81 |
| LENGTH (MM) | 46 |
| WIDTH (IN) | 1.18 |
| WIDTH (MM) | 29.97 |
| WINDOW SIZE (IN) | 0.89 X 0.68 |
| WINDOW SIZE (MM) | 24.5 |
RESOURCES
LINK TO MANUAL
